Description

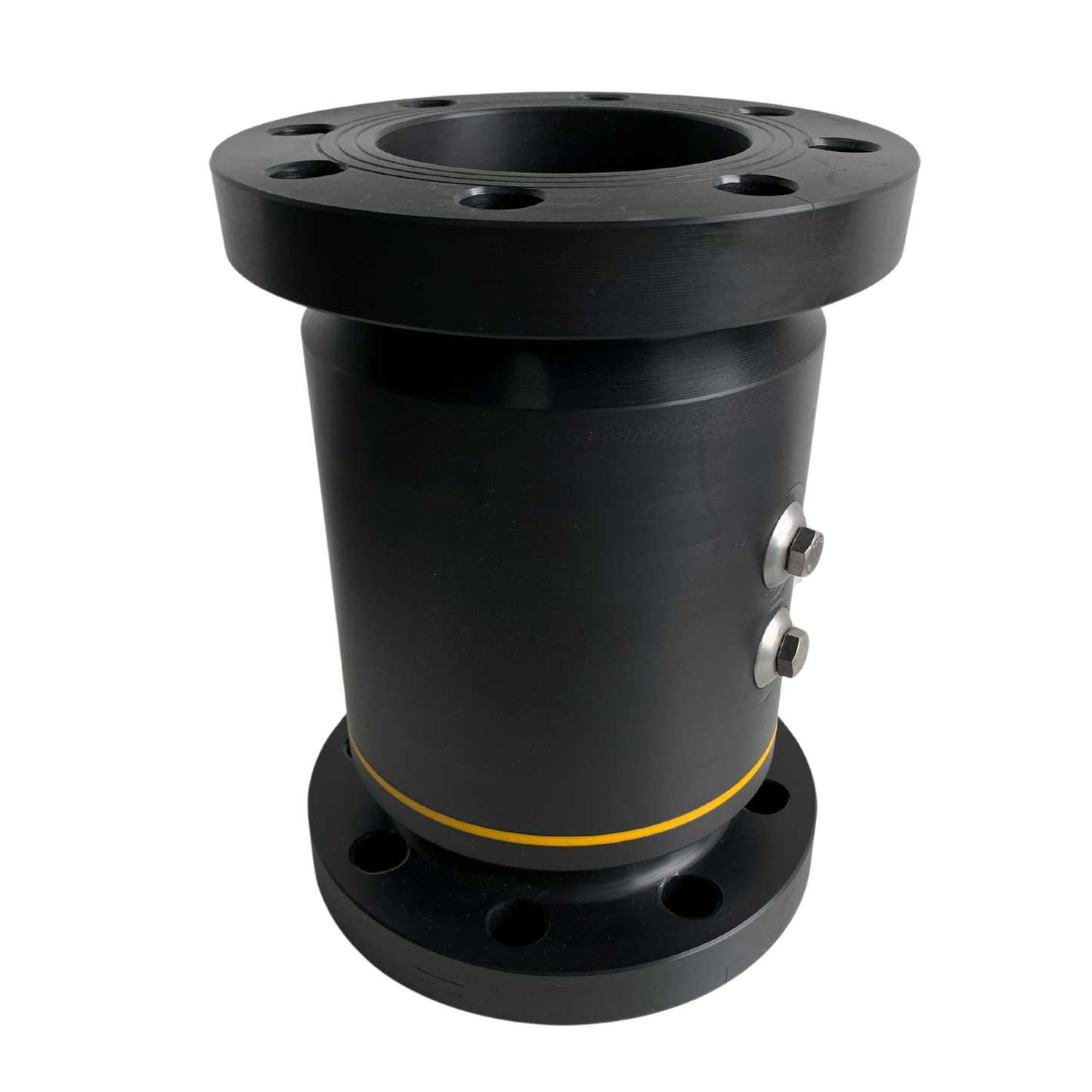

The 8" HDPE Swing Check Foot Valve with flanged end is a high-performance fluid control valve designed to allow flow in only one direction while preventing backflow. Built with a durable HDPE body and flapper and reinforced with a 316 stainless steel mechanism, it ensures exceptional corrosion resistance and reliable long-term operation.
Key Advantages:
- Prevents Backflow: Protects pumps, pipelines, and distribution systems.
- Extremely Low Flow Resistance: Allows smooth and efficient water flow.
- Very Low Opening Pressure: Opens at just 5 PSI.
- Silent Closing – No Water Hammering: Eliminates noise and shocks.
- Flexible Installation: Works in any installation position.
-
Eco-Friendly Manufacturing: 100
% recyclable components.
- Easy Installation and Maintenance: Lightweight, repair kits available.
Applications:
- Agricultural irrigation systems
- Municipal and industrial waterworks
- Mining dewatering projects
- Industrial water treatment and distribution
Component Materials:
| Component | Material |
|---|---|
| Body and Flapper | High-Density Polyethylene (HDPE) |
| Mechanism, Bolts, and Washer | 316 Stainless Steel |
| Spring | 304 Stainless Steel |
| Seal | High-Performance Rubber |
Operating Conditions:
| Feature | Specification |
|---|---|
| Pressure Range | 5 PSI to 150 PSI |
| Temperature Range | 85°F to 160°F (29°C to 71°C) |
| Corrosion Resistance | Supports sulfuric acid and most common corrosive fluids |
Technical Features:
- Very low opening pressure (5 PSI)
- Minimal flow resistance at full opening
- Silent operation – eliminates water hammer
- ANSI standard flange connections
Dimensions and Weight:
| Feature | Specification |
|---|---|
| Length | 15.7" |
| Width | 13.5" |
| Height | 13.5" |
| Weight | 28.7 lbs |
Enhance your water system's efficiency and reliability with the 8" HDPE Swing Check Foot Valve – lightweight, eco-friendly, and designed for superior fluid control.
